HC001 Series

Features

Coaxial type/water proof camera module connector for automotive use

・Space-saving design of board side connector (Φ3.50mm, H=4.70mm）

・Plug side connector can be selected according to the application with same board side connector

・Absorption of misalignment of mating part
・Waterproof by easy procedure（IP67）

・Transmission specification for high-speed function（Transmission speed：4.0GHz)
・EMI enhancement by GND connection

Specifications (general performance)

・Transmission speed：4.0GHz

・Waterproof：IP67

Download

HC001 Series You can download the product diagram and catalog data.

• image

  product name

  document

  explanation

•

  HC001S-0001-0-VE

  ・2D

  ・3D

  Download

  Board side connector

•

  HC001P-0001-0-VE

  ・Catalog

  ・2D

  ・3D

  Download

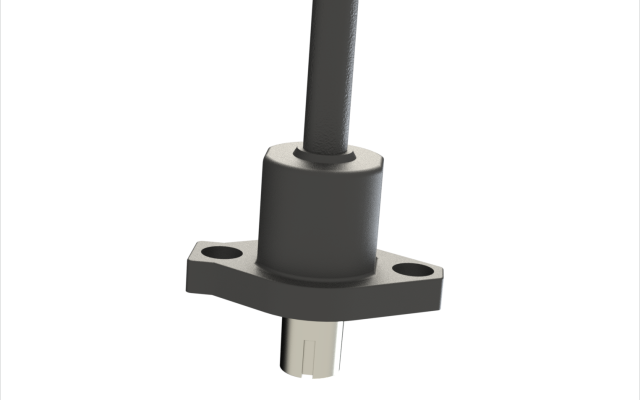

  ・Plug side connector Pigtail

  ◆ Content
  ・Feature
  ・Camera module connector Series list


•

  HC001P-1001-0-VE

  ・Catalog

  ・2D

  ・3D

  Download

  ・Plug side connector Relay direct

  ◆ Content
  ・Feature
  ・Camera module connector Series list


×
